I’m lucky enough to have spent a lot of time running suppressed handguns. Although they’re often extremely simplified on both television and video game mediums, one component that almost always gets left out is the suppressor piston (also known as a muzzle booster, booster piston, booster, piston assembly, or historically as a Nielsen device).
This one is a fairly simple part of the real secret to making most pistol suppressors work reliably on recoil-operated firearms. Suppressor pistons handle the extra weight of the added suppressor, so your gun cycles without a fuss, leading to a probably frustrating experience. In this article, I’ll break it down step by step, from what it is to how it functions, and how I pick the right one when you go to pick up a silencer from places like Silencer Shop.
The Basics of a Suppressor Piston
When I first (ignorantly) threaded a suppressor onto a pistol, I quickly learned that not all setups are plug-and-play. For tilt-barrel pistols like Glocks, 1911s, or the M9A3 I first tried this on, most modern handguns will require piston assembly to ensure that the pistol will cycle reliably. The piston assembly will fit inside the blast chamber portion of a pistol silencer in most cases.

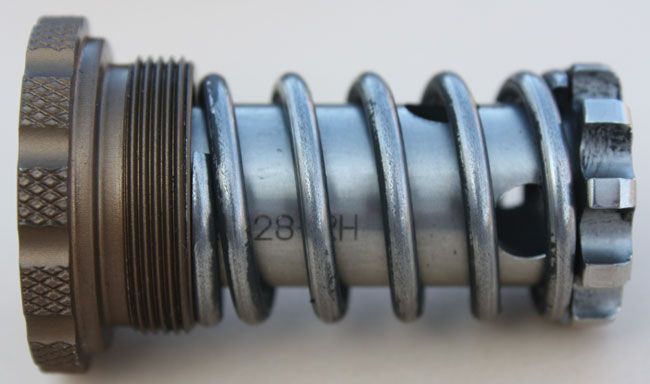

The piston itself is most often a threaded steel or titanium piece that screws directly onto your barrel’s muzzle and then uses an internal spring or spring assembly to help provide additional tension to compensate for the added weight of the suppressor on your relatively light pistol barrel. This one part does add a decent amount of weight, but the practical trade-off is that the suppressor doesn’t lock the slide in place during recoil. Without it, the suppressor’s mass would drag on the slide, causing failures to eject or feed unless the suppressor is so light that it doesn’t require a booster. These types of suppressors are typically quite lightweight and are a rare find among most suppressor options.
How the Piston Actually Works
That’s when the piston kicks in. After some initial rearward travel, the piston pushes the suppressor forward against its spring as the barrel tilts up and back. This forward force counteracts the suppressor’s inertia, letting the slide continue rearward freely to eject the spent case and chamber a fresh round and all that good stuff. The piston also helps fully seat the fresh cartridge into the chamber, making sure that you don’t run into an OOB (out of battery detonation), or failing to fully cycle the gun so it’s ready to fire again.
If we want to break it down to a step-by-step process of what’s actually happening here, that’s how I can best describe it. After the round is ignited and sent down the barrel, the bullet exits into the suppressor, and the hot gases and fouling follow, getting trapped and slowed by the baffles. Simultaneously, the barrel starts its tilt: it unlocks from the slide, and both move rearward together initially. This even happens without a booster in most cases.
Piston Types and Caliber Matching
Over the years, I’ve swapped pistons for different hosts, and the variety keeps things straightforward. Standard pistons come in fixed sizes for common calibers: a 9mm piston for subsonic loads, or one for .45. Some are adjustable or multi-caliber, which I appreciate for versatility across my collection.
At Silencer Shop, I always start with their piston selector tool—it matches threads, calibers, and suppressor models like the Omega 9K or Hybrid 46M. Titanium options save weight for competition rigs, while steel holds up for high-volume training. Pro tip from my builds: always torque to spec (around 15-20 ft-lbs) and use thread locker to avoid loosening under recoil.
It’s worth noting here (since I am a huge rimfire guy) that most rimfire pistols typically make use of fixed barrels, and therefore, there are (to the best of my knowledge) no .22lr compatible boosters. This also means that any .22lr with tilting barrels will not be able to cycle with a suppressor.
Installation and Maintenance Tips
Installing a piston is virtually the exact same process as installing any sort of thread adapter for your suppressor. For more permanent installations, I try to degrease the threads, apply a (tiny) dab of Rocksett, then thread it on hand-tight plus a quarter-turn with a wrench. After that, you can mount your suppressor, check alignment with a rod test, and you should never have to worry about the suppressor walking itself loose and then falling off the end of your gun.
Even with a thread locker or with rifle suppressors, maintenance-wise, I like to take some time to inspect the entire setup after every 500-1000 rounds. Suppressors make things extremely dirty, and carbon buildup from the piston face and spring can induce malfunctions. Pistons add more mechanical components and often have o-rings, so I also like to have those replaced if there’s wear or peening on any parts. Silencer Shop stocks replacements and full assemblies for virtually all of their pistol suppressors. If you’re eForm-ing a new can, I’d highly recommend factoring in piston and spare part costs, especially since you’ll soon have an extra $200 to spend on those parts come January 1st, 2026.
Closing Thoughts
Running suppressed pistols without a proper piston is fun at first. I, too, have lived out my fantasies as Solid Snake from the Metal Gear series, but after a while, you’ll want the full experience of a properly cycling suppressed pistol. If you’re not willing to invest in a piston, the best you can hope to get is a more or less dead nuts reliable .22LR pistol and a matching suppressor (or a non-matching one .22LRs don’t really care). However, buying a dedicated pistol suppressor has just become a lot more accessible, so I think we’ll be seeing a lot of people shelling out their hard-earned dollars for not just 9mm and 45 caliber suppressors, but also the pistols and barrels to go with their new quiet setup.
Check out Silencer Shop’s official Pistol Suppressor Guide for more detailed information about choosing the right pistol suppressor for your setup!
